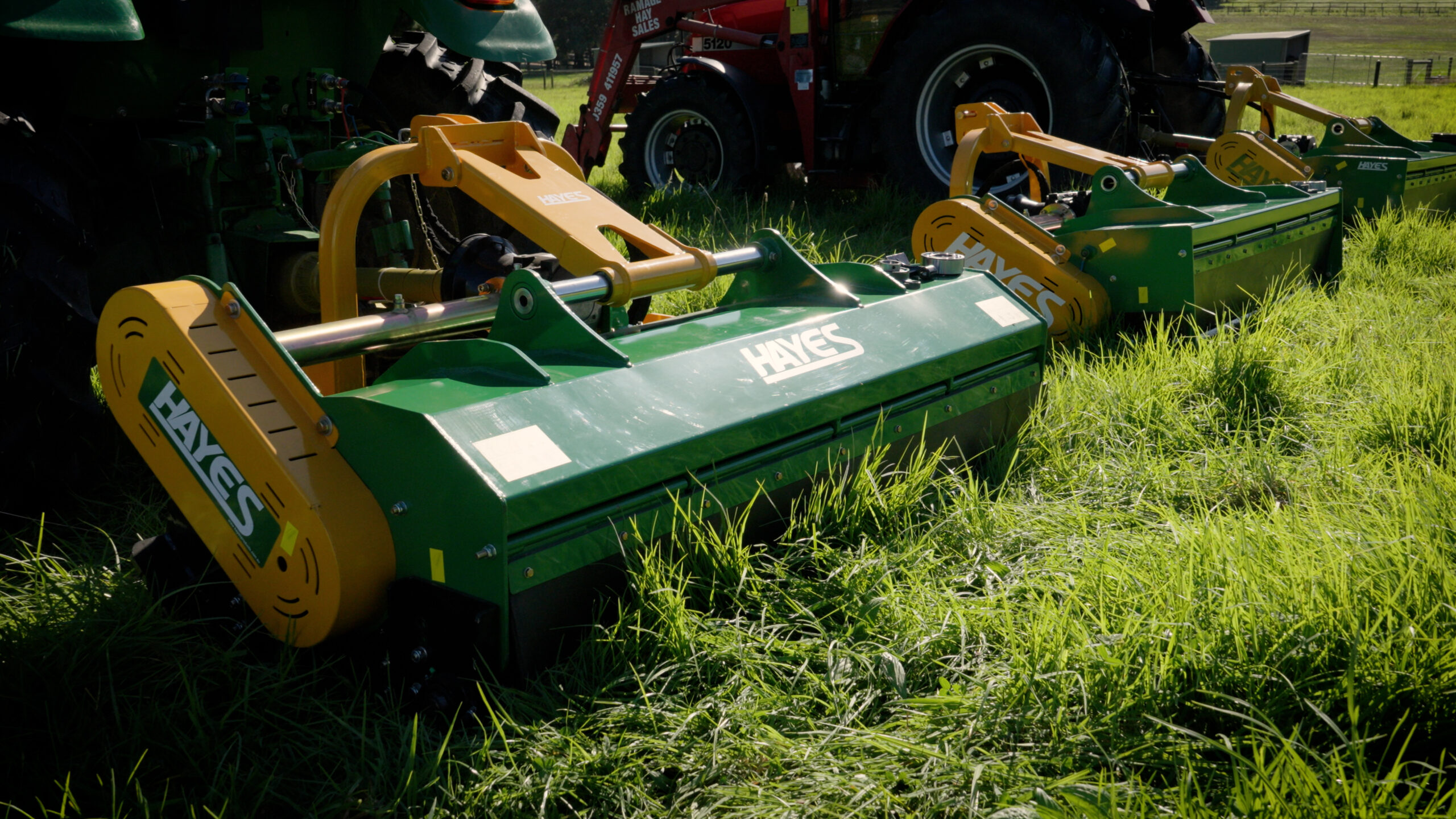

FLAIL MOWER CONTRACTOR SERIES I – 1800 Mechanical Side Shift

Description 168mm (6.6 inch) diameter blade shaft for increased strength and superior balancing Blade shaft runs on 50mm dual race SKF bearings with external access 168mm Diameter rear roller running on 40mm bearings High discharge design to increase ground speed Spiral placement of cutting blades to maximise the efficiency of the machine reducing the power required to drive the mower Ability to set extra high cut (up to 100mm) which is ideal for heavier conditions as well as areas where there may be objects protruding out of the ground such as rocks or tree stumps When fully side shifted to the non-belt side the cut will extend 1,200mm from the tractors centreline When fully side shifted to the belt side the cut will extend 1,000mm from the tractors centreline ***SEE SIZING GUIDE AND COMPARISON SHEET BELOW*** Specifications   Horsepower 45-80hp Cut Width 1,800mm Cut Height 50-100mm Sideshift Hydraulic Blade shaft 168mm Qty blades 26 Std blades Hammer type Belts 4 X B Section Bearing SKF Deck thickness 4mm Hitch pins CAT 1 (shim kit available for CAT 2) PTO rpm 540 Overall width 2,070mm Weight 592kg   The PTO shaft is included in the price The gear box and shaft require oil, to ensure the unit is filled in the correct location/s, to the correct level with the correct oil we suggest having us fill it at a charge of $20 inc gst The product is shipped in a steel frame to enable cost effective freight therefore some assembly is required 12 months manufacturing warranty (Excludes consumables such as blades & belts) and 24 months gearbox warranty
