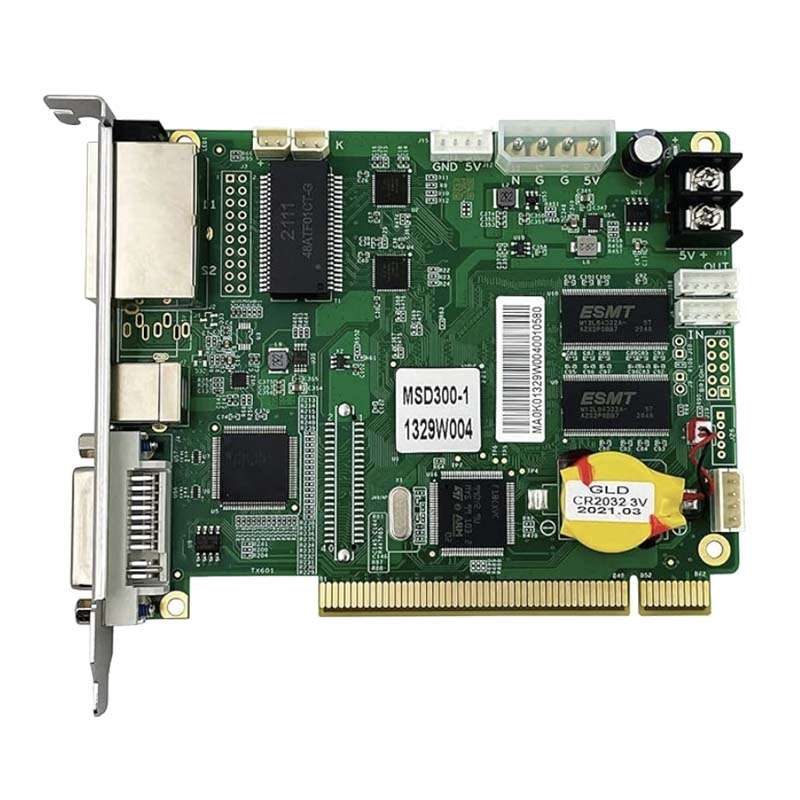

Novastar MSD300 LED Sending Card

DescriptionThe Novastar MSD300 Sending Card is a small control device made for LED display systems that need a steady signal and easy integration. It can handle digital video from one DVI source and audio input that is synced, thus it may be used in both temporary and permanent display settings. One device can handle video signals up to 1920×1200 at 60Hz, and it can even handle bespoke resolution layouts as long as they fit within its restrictions.A USB Type-B port connects to a control computer, and UART IN and OUT connections let you connect several units so they all work together. This cascading feature makes it easier to add more devices to a large display setup by coordinating up to 20 connected devices. This makes the system more scalable without making it harder to design.When utilized with high-precision calibration tools, the card can calibrate brightness and chroma at the pixel level. This makes sure that the brightness and color are the same over the whole LED surface, which makes the variances between modules less noticeable and makes the image more uniform overall, especially on big panels.The MSD300 is built to work well in tough conditions and is great for things like stage events, live productions, monitoring rooms, and fixed LED installations. It uses little power, is small, and works well all the time, making it a good choice for places where efficiency and reliability are important.CertificationsEMCRoHSPFoSFCCInput Interfaces1× Single-link DVI1× Audio inputOutput Interfaces2× RJ45 Gigabit Ethernet portsControl Interfaces1× USB Type-B control port2× UART IN / OUT portsFunctional Interfaces1× Light sensor connectorVideo Input CapabilitiesMaximum input resolution up to 1920×1200@60HzCustom resolutions supportedMaximum width up to 3840 pixelsMaximum height up to 3840 pixelsInterlaced signals not supported8-bit RGB 4:4:4 sampling supportedEthernet Port CapacityUp to 650,000 pixels per Ethernet portEthernet port redundancy supportedElectrical SpecificationsInput voltage: DC 3.3 V to 5.5 VRated current: 0.6 ARated power consumption: 3 WOperating EnvironmentOperating temperature: –20°C to 75°COperating humidity: 10%–90% RH, non-condensingPhysical SpecificationsDimensions: 130.1 mm × 99.7 mm × 14.0 mmNet weight: 104.3 gPacking InformationCardboard box dimensions: 335 mm × 190 mm × 62 mmPacking box dimensions: 400 mm × 365 mm × 355 mmIncluded AccessoriesUSB cableDVI cable
